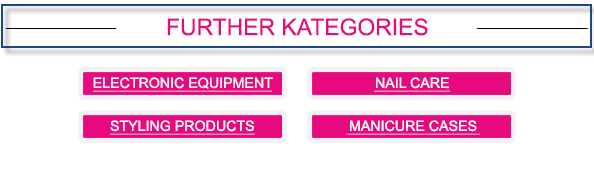

Integrate section bar as image

Instead of a simple section bar, you can also insert an image as a section bar and couple it with a link. Your readers are then directed to your webshop or your company page when they click a category.

Step by step

To integrate a section bar as an image, proceed as follows:

  1. In the Template Editor, open the Section bar main element into which you would like to insert a section bar as an image.

  2. Click the Add element button.

    The Add new element dialog box is displayed.

  3. Select the Section bar as image element.

  4. Confirm the dialog box by clicking Add + Close.

    The Section bar as image element is displayed in the Section bar element.

  5. Click Link image in the Section bar as image element.

    The Link image dialog box will be displayed.

    Field

    Description

    Image source

    Enter the Web address (URL) of the image.

    You can either link the image file from a webspace or enter a link address manually in the field.

    Note: Make sure that the image you insert has a width of at least 480 px, in order to ensure an optimum display in the mobile view. There is no expected quality loss in the desktop version, as the image size is reduced accordingly.

    Preview

    Here you can see a preview of the image file.

    Alternative text

    Enter an alternative text, for example, Header. The alternative text will be displayed in place of the image if the image is blocked by the recipient’s email program.

    Tooltip

    Enter a tooltip here.

    The tooltip will be displayed if the recipient hovers the mouse pointer over the image.

    Name in the report

    Note: You can skip the entry of a name. The Track graphic call-up check box must be enabled before you can enter a specific name in the report for the tracked image. When using an Inxmail Professional smart template, the graphic call-up is already counted via a tracking pixel, so that separate image tracking is unnecessary.

    Track graphic call-up

    Note: You can skip the Track graphic call-up setting. When using an Inxmail Professional smart template, the graphic call-up is already counted via a tracking pixel.

    Couple graphic call-up with action

    Note: You can skip the Couple graphic call-up with action setting. This setting is only meaningful if used in combination with the ‘Track graphic call-up’ setting.

    Options

    Note: You can skip the settings under Options. The scaling of the images is already controlled via the Inxmail Professional smart template.

  6. Specify your settings in the fields.
  7. Confirm the dialog box by clicking OK.

  8. Click the Couple image with link button if you want to add a link to the image.

    Field

    Description

    Link type



    Text and image links

    Unique count link (unique clicks)

    Inxmail Professional determines the number of unique clicks and the total number of clicks for this link type.

    Personal data

    When the appropriate settings have been made, unique count clicks allow you to collect various personal data. This allows you to determine the clicking recipients through the formation of target groups, for example. This lets you send mailings specifically to those recipients who have expressed interest in particular products or services through their click behaviour (Creating conditions based on recipient reactions).

    Note: Within the European Union, it is necessary to obtain the consent of your recipients to be able to collect their personal data.

    Settings

    To collect and process personal data, you must assign the value Yes to the advanced property ‘Include consent for person-based tracking’ in the respective mailing list or enable the setting in the global settings and apply for the respective mailing list (Mailing lists > Advanced properties).

    Total count link (all clicks)

    Inxmail Professional determines the total number of clicks for this link type.

    The multiple clicks of recipients are also counted. This means that if the same recipient clicks the same link several times, each individual click will be counted.

    Personal data

    No personal data is stored for this type of link. This means you cannot tell if the clicks were made by various recipients or by just a single recipient.

    No count link (no counting)

    This link type only makes the link functionality available.

    Neither the number of clicks nor personal data is stored by Inxmail Professional.

    Tracking permission links

    Grant tracking permission

    The Grant tracking permission link allows you to obtain consent to person-based tracking from your recipients. As soon as a recipient clicks this link, the value in the Tracking permission column is set to Yes.

    Withdraw tracking permission

    You can provide your recipients with the option to withdraw consent to person-based tracking once they have given it at any time through the Withdraw tracking permission link. As soon as a recipient clicks this link, the value in the Tracking permission column is set to No.

    Link text

    Enter a link address here.

    Click the Select webpage button to select the address or enter the address manually in the field.

    Name in the report

    Select a unique name that will be used for the link in the reports.

    Couple link with action

    You can couple the link with an action.

    To do so, enable the check box and select an action from the drop-down list.

  9. Specify your settings in the fields.
  10. Confirm the dialog box by clicking OK.
  • You have linked an image as a section bar and have coupled it with a link.
