Interaction between event XML and preview profile

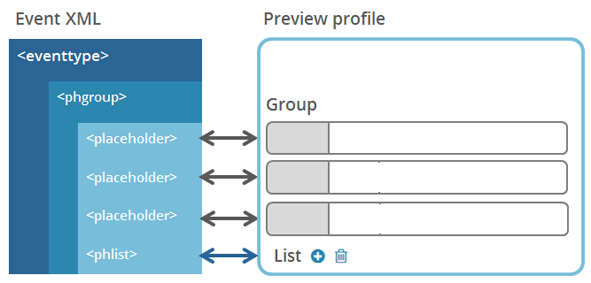

When you create a new preview profile, the structure and the number of input fields are generated automatically based on the event XML.


  • </phgroup>

    A subheading is created for every </phgroup> tag.

  • <placeholder>

    An input field is created for every <placeholder> tag.

  • <phlist>

    A subheading with a i_xcom_plus_rund.png button is created for every <phlist> tag.

    You can create a new list by clicking the i_xcom_plus_rund.png button.

    The names of the subheadings and input fields result from the entries between the <translation> tags.
